Product name : IStar P25 Outdoor Fixed install led display
Product No. : IStar P25 Outdoor Fixed install led display
Details:
Advantages of outdoor advertising screen:
1.Apply with low consumption chips and two separately low voltage power supplies. Compare with the old outdoor system, it can save nearly 30% energy;
2.Modules changeable among 10.66mm,12.8mm, 16mm, 21.3mm in the same cabinet. It’s easy and cost-save for future update of your screen.
|
N0.
|
STAR25
|
|
|
Unit Module
|
Pixel pitch
|
P25
|
|
Size of pixel
|
/
|
|
|
Pixel configuration
|
1R1G1B
|
|
|
Size of block module
|
DIP
|
|
|
Resolution of module
|
8 X8
|
|
|
Density
|
1600dots/m²
|
|
|
Module power
|
50W
|
|
|

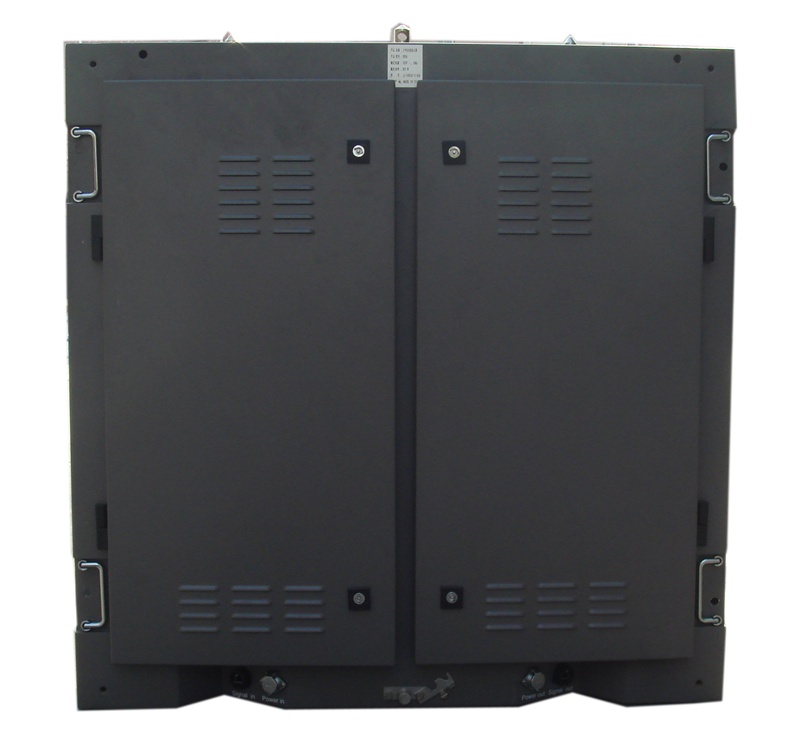

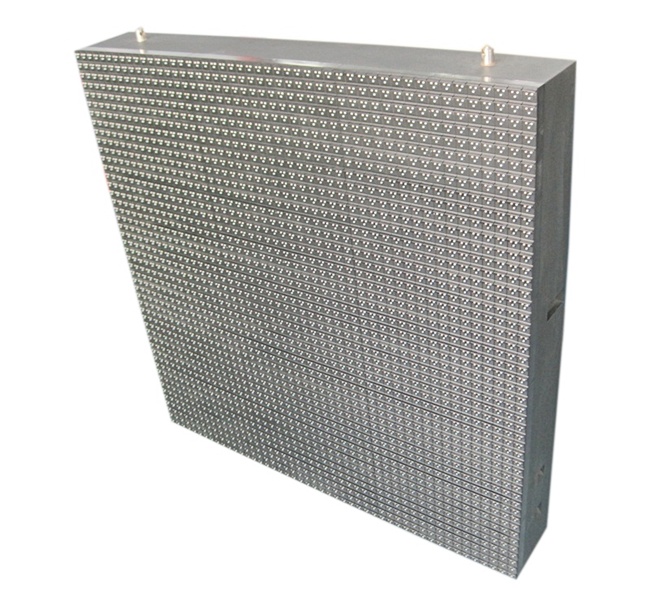

Cabinet
|
Cabinet material
|
Steel cabinet
|
|
Size of cabinet(l*h*t)
|
|
|
|
Weight of cabinet
|
48KG
|
|
|
Support hanging or not
|
NO
|
|
|
Main Parameter
|
Best viewing distance
|
＞25m
|
|
Best viewing angle
|
≥110°
|
|
|
Max power consumption
|
＜760W/m²
|
|
|
Colors
|
＞16.7M
|
|
|
Gray scale
|
14bits
|
|
|
Color temperature
|
6500K
|
|
|
Control method
|
synchronization
|
|
|
Driving device
|
constant current
|
|
|
Driving method
|
Static scaning
|
|
|
Frame frequency
|
＞60HZ
|
|
|
Refresh frequency
|
1000HZ
|
|
|
Brightness
|
＞5000cd/m²
|
|
|
Working voltage
|
AC220V/110V±10％
|
|
|
Working temperature
|
-20℃~50℃±10％
|
|
|
Out-of control point
|
＜0.0001
|
|
|
Brightness Control
|
256 grade
|
|
|
IP grade
|
Front IP65/Rear IP54
|
|
|
Mtbf
|
＞10,000 hours
|
|
|
Life span
|
100,000 hours
|
